Unique image obtained by Brazilian scientists with high-speed camera shows how lightning rods work | AGÊNCIA FAPESP

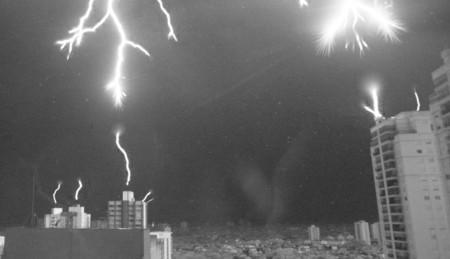

Unique image obtained by Brazilian scientists with high-speed camera shows how lightning rods work The image captured with a high-speed camera shows several lightning rods trying to connect to the downward discharge. The two descending branches seen in the image are part of the same lightning strike, which ended up hitting the building on the right (photo: Diego Rhamon/INPE)

Unique image obtained by Brazilian scientists with high-speed camera shows how lightning rods work

March 15, 2023

By José Tadeu Arantes  |  Agência FAPESP – With a high-speed camera and the luck of being in the right place at the right time, physicist Marcelo Saba, a researcher at Brazil’s National Space Research Institute (INPE), and PhD candidate Diego Rhamon obtained a unique image of lightning strikes showing details of the connections to nearby buildings.

The image is so special that it appeared on the cover of the 28 December 2022 issue of Geophysical Research Letters (GRL) – one of the most important scientific journals in the field –, which featured an article with Saba as first author. Saba’s research on this topic was supported by FAPESP.

“The image was captured on a summer evening in São José dos Campos [in São Paulo state] while a negatively charged lightning bolt was nearing the ground at 370 km per second. When it was a few dozen meters from ground level, lightning rods and tall objects on the tops of nearby buildings produced positive upward discharges, competing to connect to the downward strike. The final image prior to the connection was obtained 25 millionths of a second before the lightning hit one of the buildings,” Saba said. This is the spectacular image featured on the cover of the journal.

He used a camera that takes 40,000 frames per second. When the video is played back in slow motion, it shows how lightning discharges behave and also how dangerous they can be if the protection system is not properly installed: although there are more than 30 lightning rods in the vicinity, the strike connected not to them but to a smokestack on top of one of the buildings. “A flaw in the installation left the area unprotected. The impact of a 30,000-amp discharge did enormous damage,” he said.

On average, 20% of all lightning strikes involve an exchange of electrical discharges between clouds and the ground. The other 80% occur inside clouds. Almost all strikes that touch the soil are cloud-to-ground discharges. Upward strikes also occur but are rare and start at the top of tall structures such as mountains, skyscrapers, towers and antennas. Lightning strikes can also be classified as negative or positive depending on the charge transferred to the ground.

“Lightning strikes can be as long as 100 km and transport currents as strong as 30,000 amps, equivalent to the current used simultaneously by 30,000 100-watt bulbs. In some cases, the current can reach 300,000 amps. The temperature of a typical lightning strike is 30,000 °C, five times the Sun’s surface temperature,” Saba said.

See the superslow footage capturing the moment when downward strikes connect with upward strikes at 0:20

How lightning strikes are formed

It all begins with cloud electrification, he explained. The mechanism is poorly understood but basically involves friction between particles of ice, water drops and hail, releasing charges and creating polarities between different cloud regions, with differences in electrical potential ranging from 100 million volts to 1 billion volts.

“Bear in mind that storm clouds are huge structures. The bottom is 2 km to 3 km from the ground, the top can reach 20 km in altitude, and the diameter can be 10 km to 20 km,” he said.

Lightning strikes branch out as the electrical charges seek the path of least resistance, rather than the shortest path, which would be a straight line. The path of least resistance, usually a zigzag, is determined by different electrical characteristics of the atmosphere, which is not homogeneous. “A lightning strike made up of several discharges can last up to 2 seconds. However, each discharge lasts only fractions of milliseconds,” Saba said.

Lightning rods neither attract nor repel strikes, he added. Nor do they “discharge” clouds, as used to be believed. They simply offer lightning an easy and safe route to the ground.

Because it is not always possible to rely on the protection of a lightning rod, and most atmospheric discharges occur in summer in the tropics, it is worth considering Saba’s advice. “Storms are more frequent in the afternoon than in the morning, so be careful about outdoor activities on summer afternoons. Find shelter if you hear thunder, but never under a tree or pole, and never under a rickety roof,” he said. “If you can’t find a safe place to shelter, stay in the car and wait for the storm to blow over. If no car or other shelter is available, squat down with your feet together. Don’t stand upright or lie flat. Indoors, avoid contact with appliances and fixed-line telephones.”

It is possible to survive being struck by lightning, and there are many examples. The odds increase if the person receives care quickly. “Cardiac arrest is the only cause of death. In this case, cardiopulmonary resuscitation is the recommended treatment,” he said.

Saba began systematically studying lightning with high-speed cameras in 2003, ever since building a collection of videos of lightning filmed at high speed that has become the world’s largest. Between them, he and his students have been awarded 17 grants and scholarships by FAPESP.

The article “Close view of the lightning attachment process unveils the streamer zone fine structure” is at: agupubs.onlinelibrary.wiley.com/doi/10.1029/2022GL101482.


See more photos
