Electronic device detects molecules linked to cancer, Alzheimer's and Parkinson's

An inexpensive portable biosensor has been developed by researchers at Brazil's National Nanotechnology Laboratory with FAPESP's support.

By Diego Freire  |  Agência FAPESP – A biosensor developed by researchers at the National Nanotechnology Laboratory (LNNano) in Campinas, São Paulo State, Brazil, has been proven capable of detecting molecules associated with neurodegenerative diseases and some types of cancer.

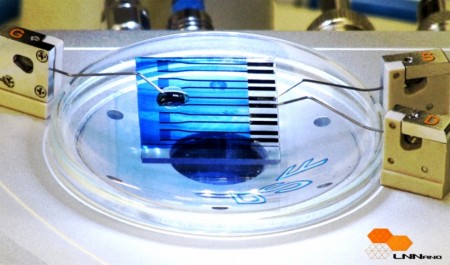

The device is basically a single-layer organic nanometer-scale transistor on a glass slide. It contains the reduced form of the peptide glutathione (GSH), which reacts in a specific way when it comes into contact with the enzyme glutathione S-transferase (GST), linked to Parkinson’s, Alzheimer’s and breast cancer, among other diseases. The GSH-GST reaction is detected by the transistor, which can be used for diagnostic purposes.

The biosensor was developed as part of a FAPESP-funded Thematic Project entitled “Development of novel strategic materials for integrated analytical devices”. The project focuses on the development of point-of-care devices by researchers in a range of knowledge areas, using functional materials to produce simple sensors and microfluidic systems for rapid diagnosis.

“Platforms like this one can be deployed to diagnose complex diseases quickly, safely and relatively cheaply, using nanometer-scale systems to identify molecules of interest in the material analyzed,” explained Carlos Cesar Bof Bufon, Head of LNNano’s Functional Devices & Systems Lab (DSF) and a member of the research team for the project, whose principal investigator is Lauro Kubota, a professor at the University of Campinas’s Chemistry Institute (IQ-UNICAMP).

In addition to portability and low cost, the advantages of the nanometric biosensor include its sensitivity in detecting molecules, according to Bufon.

“This is the first time organic transistor technology has been used in detecting the pair GSH-GST, which is important in diagnosing degenerative diseases, for example,” he explained. "The device can detect such molecules even when they’re present at very low levels in the examined material, thanks to its nanometric sensitivity.” A nanometer (nm) is one billionth of a meter (10-9 meter), or one millionth of a millimeter.

The system can be adapted to detect other substances, such as molecules linked to different diseases and elements present in contaminated material, among other applications. This requires replacing the molecules in the sensor with others that react with the chemicals targeted by the test, which are known as analytes.

“LNNano’s Functional Devices & Systems division has developed several platforms for chemical, physical and biological sensing in areas of strategic importance both at home and abroad, such as health, environment and energy,” Bufon said.

The goal is “to have a series of solutions in the shape of point-of-care devices to respond with agility to a wide array of requirements”, he added. These include outbreaks of disease or the need to detect contaminants such as lead and toxins in water samples.

The research that led to the development of the biosensor to detect molecules linked to neurodegenerative diseases and some types of cancer is reported in the article “Water-Gated Phthalocyanine Transistors: Operation and Transduction of the Peptide-Enzyme Interaction” published by the journal Organic Electronics and available on the internet at www.sciencedirect.com/science/article/pii/S1566119916300416.

The authors are researchers Rafael Furlan de Oliveira, Leandro das Mercês Silva and Tatiana Parra Vello, as well as Bufon. All four are affiliated with LNNano.

From glass to paper

The team is working on paper-based biosensors to lower the cost even further and to improve portability and facilitate fabrication as well as disposal.

“Paper offers a number of advantages as a platform for analytical devices,” Bufon said. “It’s a natural polymer, widely available everywhere, lightweight, biodegradable, portable, and foldable.”

The challenge is that paper is an insulator in its usual form. Bufon has developed a technique to make paper conductive and capable of transporting sensing data by impregnating cellulose fibers with polymers that have conductive properties.

“The technique is based on in situ synthesis of conductive polymers,” he said. “For the polymers not to remain trapped on the surface of the paper, they have to be synthesized inside and between the pores of the cellulose fibers. This is done by gas-phase chemical polymerization: a liquid oxidant is infiltrated into the paper, which is then exposed to monomers in the gas phase.” A monomer is a molecule of low molecular weight capable of reacting with identical or different molecules of low molecular weight to form a polymer.

“The monomers evaporate under the paper and penetrate the pores of the fibers at the submicrometer scale. Inside the pores, they blend with the oxidant and begin the polymerization process right there, impregnating the entire material,” he added.

“It’s like filling a room with balloons. If they don’t fit through the door when inflated, the alternative is to inflate them inside the room.”

The polymerized paper acquires the conductive properties of the polymers. This conductivity can be adjusted by manipulating the element embedded in the cellulose fibers, depending on the application for which the paper is designed. Thus, the device can be electrically conductive, allowing current to flow without significant losses (imagine paper antennas, for example), or semiconductive, interacting with specific molecules and functioning as a physical, chemical or electrochemical sensor.
